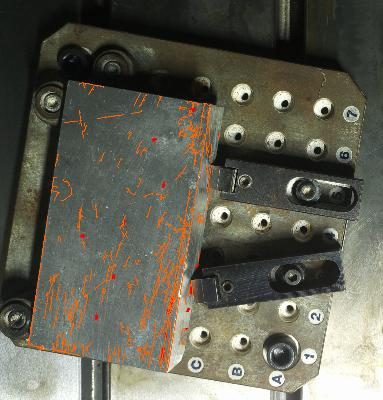

LoTTechnologyNC-Inspect4.0 est une solution complète de contrôle automatique par vision (2D, 3D, état de surface) qui s’intègre facilement à chaque étape clé de votre chaîne de production (embarquée ou hors ligne de production): réception fournisseur, atelier, machine de fabrication, ligne d’assemblage manuelle, ou contrôle final en sortie d’usine.
No complex preparation : a simple CAD model is sufficient.
Gagnez en efficacité, en réactivité, et en qualité; là où vous en avez vraiment besoin.

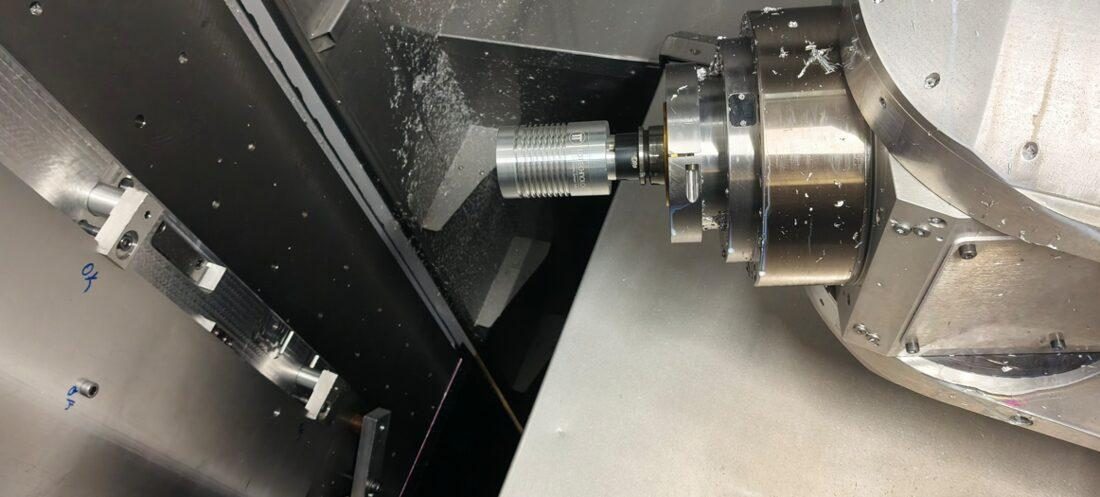

The ability to accurately detect non-compliances with each launch of the program part or assembly is essential to ensure the quality of the final product and to avoid any drift in production. Thanks to our solution embedded control on the machine tool, the checking points, critiques, as well as the acceptance criteria can be viewed directly on a screen. This allows the operator to immediately identify the deviations from the reference model CAD.
A test report is automatically generated and can be traced directly to the EB, which significantly reduces the time of inspection and documentation, reduces scrap and rework late, and enhances the traceability of each transaction. What goes around, comes around !
The visual inspection non-destructive testing is essential to ensure the quality and safety of fixtures machining, without compromising the integrity of the parts or tooling. This critical step helps to avoid costly mistakes that could affect the performance of the manufacturing process or lead to non-conformities delivered during the processing or transfer of crude oil.
However, the clear visualization of flaws or gaps identified during inspection (for example, bad positioning, lack of components, orientation error) is often limited, complex, and not easily accessible to operators or technicians responsible for the correction.

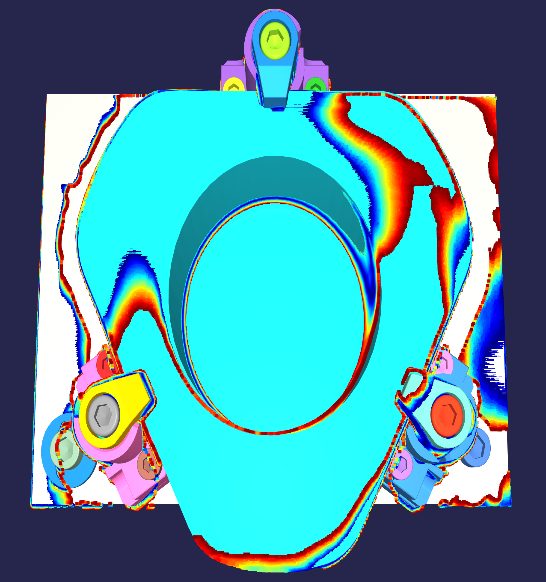

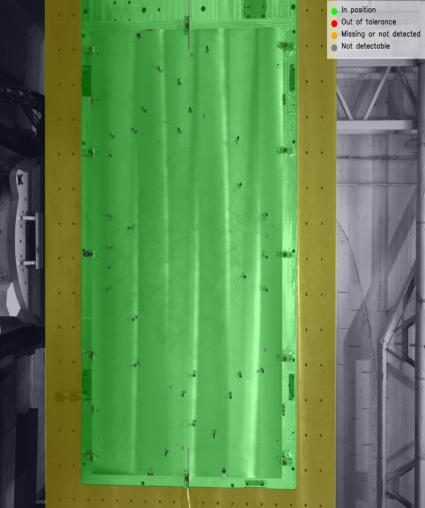

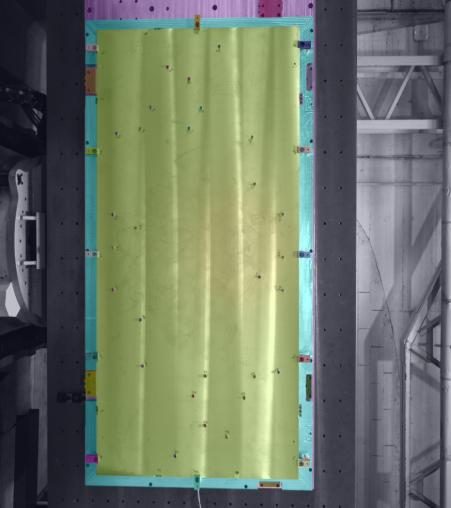

With NC-Inspect4.0the actual mount is automatically compared with the reference model CAD, and the differences are realized directly on a screen via a visualization in augmented reality. The defects are identified as points of attention, interactive, located on the acquired image, allowing for early intervention and targeted.
This approach improves the traceability, accelerates decision-making and strengthens the collaboration between inspection, adjustment and production.
NC-Inspect4.0 – Ensure the quality, upon receipt of the parts and sub-assemblies.
Quickly identify parts or sub-assemblies are non-compliant from suppliers is essential to ensure a high level of quality throughout the production chain and to avoid the integration of defective items in the fixtures or equipment.
However, the quality control process at the front desk are often long, complex, and prone to human errors. The defects that are not detected in time, can cause delays, waste or expensive production stoppages.
NC-Inspect4.0 automates and reliable this step compare in a few seconds the physical piece received its reference model digital (CAD). Thanks to its smart camera embedded in its system of visual analysis increased, the tool guides the operator in the verification steps with a clear and intuitive interface.
This approach allows you to :
Validate compliance with dimensional and visual components incoming,
Detect deviations from a reliable and traceable,
Reduce the time of inspection while limiting the costs related to errors or supplier returns.
Ensure compliance of each piece before shipping.

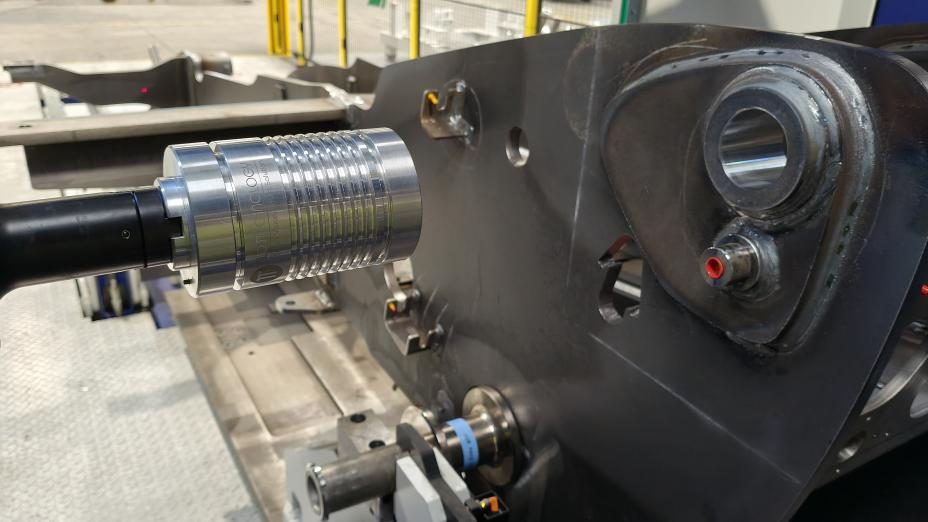

NC-Inspect4.0 permet un contrôle qualité automatisé et sans contact directement sur centre d’usinage, ou en bout de chaine de fabrication, là où les erreurs coûtent le plus cher. Grâce à l’analyse visuelle en temps quasi réel et à la comparaison directe avec le modèle CAO, chaque pièce ou sous-ensemble est vérifié avec précision avant son démontage, sa mise en stock ou son expédition.
✔️ Reduction of scrap, and customer feedback
✔️ Traceability enhanced control operations
✔️ Snap decision on the compliance without disrupting production
✔️ Solution deployable without heavy infrastructure
A solution that is reliable, fast, and adaptable to a control 4.0, which is aligned on the industrial requirements of modern.
